| Size | Tail Length/ Position(mm) |
Dimension(mm) E : Outline V : View-Area A : Active-Area |
Glass/ Total Thickness(mm) |
Product Number | Drawing, 2D/3D Data |
Controller |
|---|---|---|---|---|---|---|
| 5.7 | 70/Lower Side | E : 134.2 x 110.6 V : 121.2 x 92.4 A : 117.2 x 88.4 |
1.8/2.1 |
MTR-G057B070A |
||
| 7w | 70/Lower Side | E : 167.1 x 112.1 V : 157.1 x 95.5 A : 152.4 x 91.44 |
1.8/2.1 |
MTR-G070WB070A |
||
| 8.4 | 70/Lower Side | E : 188.4 x 150.5 V : 175.4 x 132.8 A : 171.4 x 128.8 |
1.8/2.1 |
MTR-G084B070A |
||
| 10.1w | 100/Lower Side | E : 231 x 156.2 V : 221 x 139.6 A : 216.96 x 135.6 |
1.8/2.1 |
MTR-G101WB100B |
||
| 10.4 | 100/Lower Side | E : 228.5 x 180.9 V : 215.5 x 163.2 A : 211.2 x 158.4 |
1.8/2.1 |
MTR-G104B100B |
||
| 12.1 | 100/Lower Side | E : 263.3 x 207 V : 250.3 x 189.3 A : 246 x 184.5 |
1.8/2.1 |
MTR-G121B100B |
||
| 12.1w | 100/Lower Side | E : 277.92 x 184.4 V : 265.62 x 167.7 A : 261.62 x 163.7 |
1.8/2.1 |
MTR-G121WB100B |
||
| 15 | 100/Lower Side | E : 321 x 250 V : 308.43 x 232.9 A : 304.1 x 228.1 |
1.8/2.1 |
MTR-G150B100B |
||
| 15.6w | 100/Lower Side | E : 361.4 x 214.4 V : 349.94 x 199.23 A : 345.94 x 195.23 |
1.8/2.1 |
MTR-G156WB100B |
||
| 17 | 100/Lower Side | E : 358.5 x 296.5 V : 341.92 x 274.3 A : 337.92 x 270.34 |
1.8/2.1 |
MTR-G170B100B/SX |
||
| 18.5w | 100/Lower Side | E : 427.6 x 253.9 V : 415.6 x 236.2 A : 411.6 x 232.2 |
1.8/2.1 |
MTR-G185WB100B |
||
| 21.5w | 100/Lower Side | E : 500 x 293.2 V : 480.64 x 272.11 A : 476.64 x 268.11 |
1.8/2.1 |
MTR-G215WB100B |
Download Docs
Product Detail
-
![4-wire cell resistive multi-touchscreen]()
-
Multi-Touch Gesture Operation with Resistive-Touchscreen
Resistive multi-touchscreen employing DMC's proprietary 4-wire cell system. This light-load multi-touch gesture model enables smartphone-like operation even with the resistive film method.
-
![Original 4-wire Cell-Type Resistive Multi-Touchscreen]()
-
Original 4-wire Cell-Type Resistive Multi-Touchscreen

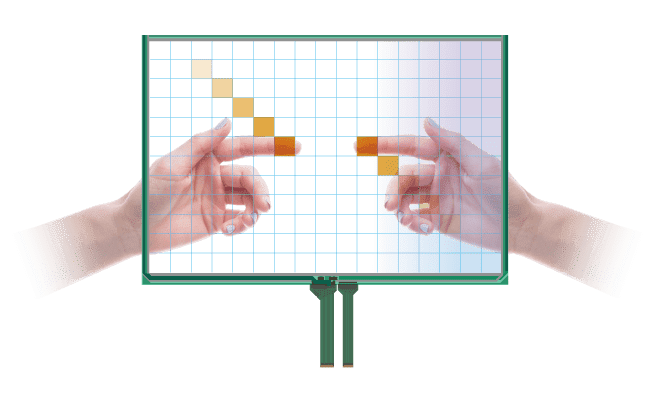

The entire touchscreen is divided into fine cells in the vertical and horizontal directions, and input information touching each cell is detected by a dedicated controller, enabling highly accurate two-point pressing.
-
![Light Touch & Feel Like a Smartphone-like Operation]()
-
Light Touch & Feel Like a Smartphone-like Operation
Smooth film material with unique technology enables operation similar to the electrostatic method, utilising the unique advantages of resistive film. Flick input and other smartphone-like operations are possible.
-
![Anti-Glare Film to Reduce Glare]()
-
Anti-Glare Film to Reduce Glare
An anti-glare film that suppresses the reflection of light is used for the ITO film. By customizing, it is possible to change to a clear film to see the LCD image clearly.
Why choose the MTR-G SERIES?
-
![]()
-
Original 4-wire Cell-Type Resistive Multi-Touchscreen
Based on a 4-wire resistive system, the sensor is subdivided by dividing it into cells, enabling simultaneous detection of multiple points between different cells. Reduced operating load enables capacitance-like gesture operation.
-
![]()
-
Light-Touch Resistive Sensor + Gesutre Detective Controller
Smooth multi-touch gesture detection is possible with a light-load touchscreen with significantly reduced input load and a high output rate controller. This enables a smartphone-like feel and interface.
-
![]()
-
High Environmental Performance
Resistive touchscreen systems operate under load and are therefore free from noise. The multi-touch gesture operation is possible without changing the ease of use of the resistive film, even in various situations faced in the installation environment, such as water and gloves.
-
![]()
-
Easy to Embedded at Low Cost
Resistive touch screens have good cost performance. Since gesture operation can be used with simple installation, it is possible to introduce both safety and operability, which have been issues so far, and at a low cost.
Recommended for the Following
-
![]()
Interested in & want to use Multi-Touch Gesture ControlsInterested in smartphone-like controls and want to scroll the screen with a light touch.
-
![]()
Want to operate simplifying complex multi-button operationsIntuitive operate manuals & drawings, such as zooming, etc., eliminating sources of error.
-
![]()
Multi-touch Gestures does not match the Cost of ImplementingInstallation environment, conditions, costs make it difficult to adopt PCAP touchscreen.
Comparison of Product Series
-
FeatureMulti-touch Gesture Operation with Resistive Touchscreen
Light Duty Multi-Touch
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Multi-Touch
Valuation1
Gestures Supported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up5.7 － 21.5w
5.77w8.410.1w10.412.112.1w1515.6w1718.5w21.5w -
FeatureSmartphone-Like Operation with Resistive Touchscreen
Adoption of Light-Load Film
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Supported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up6.5 － 21.5w
6.510.412.112.1w1515.6w18.5w1921.5w -
FeatureHighly Reliable & Versatility Resistive Touchscreen
Diffusion Models
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up3.8 － 21.3
3.856.2w6.57w7.510.410.512.11517.11921.3 -
FeatureHigh Visibility & Maintainability High-Spec Model
ANR/Anti-Fingerprint
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up5.7 － 15
5.77w8.48.5w10.412.115 -
FeatureHigh Durability& Weatherability Square Model with 5-wire Type
Long-Life Model
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up10.4 － 19
10.412.1151719
