DUS-LA SERIES - Capacitive Touchscreen

Line Up

DRAG TO LEFT

Current

Size	Dimention(mm) E : Outline A : Active-Area	Total Thickness(mm)	Product Number	Drawing, 2D/3D Data	Controller
7w	E : 188 x 133 A : 152.4 x 91.44	1.1	DUS-LA070WB060A1A	PDF DXF STEP	DUS1200-02-LA070W001
7w	E : 183.1 x 132 A : 152.4 x 91.44	1.8	DUS-LA070WB060A2A	PDF DXF STEP	DUS1200-02-LA070W002
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.1	DUS-LA101WB060A1A	PDF DXF STEP	DUS1200-02-LA101W001
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.8	DUS-LA101WB060A2A	PDF DXF STEP	DUS1200-02-LA101W002
10.1w	E : 255 x 171.7 A : 222.72 x 125.28	1.8	DUS-LA101WA060A2A/WS * Build to Order	PDF DXF STEP	DUS1200-02-LA101WWS001
10.4	E : 272 x 216 A : 211.2 x 158.4	1.1	DUS-LA104B060B1A	PDF DXF STEP	DUS2200A-02-LA104001
10.4	E : 246.6 x 198.7 A : 211.2 x 158.4	1.8	DUS-LA104B060B2A	PDF DXF STEP	DUS2200A-02-LA104002
12.1	E : 308 x 242 A : 246 x 184.5	1.1	DUS-LA121B060B1A	PDF DXF STEP	DUS2200A-02-LA121001
12.1	E : 283.6 x 227 A : 246 x 184.5	1.8	DUS-LA121B060B2A	PDF DXF STEP	DUS2200A-02-LA121002
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.1	DUS-LA121WB060B1A	PDF DXF STEP	DUS2200A-02-LA121W001
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.8	DUS-LA121WB060B2A	PDF DXF STEP	DUS2200A-02-LA121W002
15	E : 393 x 317 A : 304.2 x 228.1	1.1	DUS-LA150B060B1A	PDF DXF STEP	DUS2200A-02-LA150001
15	E : 344.4 x 273.2 A : 304.2 x 228.1	1.8	DUS-LA150B060B2A	PDF DXF STEP	DUS2200A-02-LA150002
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.1	DUS-LA156WB060A1A	PDF DXF STEP	DUS3200-02-LA156W001
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.8	DUS-LA156WB060A2A	PDF DXF STEP	DUS3200-02-LA156W002
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.1	DUS-LA185WB060A1A	PDF DXF STEP	DUS3200-02-LA185W001
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.8	DUS-LA185WB060A2A	PDF DXF STEP	DUS3200-02-LA185W002
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.1	DUS-LA215WB060A1A	PDF DXF STEP	DUS3200-02-LA215W001
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.8	DUS-LA215WB060A2A	PDF DXF STEP	DUS3200-02-LA215W002

Conventional

Size	Dimention(mm) E : Outline A : Active-Area	Total Thickness(mm)	Product Number	Drawing, 2D/3D Data	Controller
7w	E : 188 x 133 A : 152.4 x 91.44	1.1	DUS-LA070WA060A1A	PDF DXF STEP	DUS1200-02-LA070W001
7w	E : 183.1 x 132 A : 152.4 x 91.44	1.8	DUS-LA070WA060A2A	PDF DXF STEP	DUS1200-02-LA070W002
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.1	DUS-LA101WA060A1A	PDF DXF STEP	DUS1200-02-LA101W001
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.8	DUS-LA101WA060A2A	PDF DXF STEP	DUS1200-02-LA101W002
10.4	E : 272 x 216 A : 211.2 x 158.4	1.1	DUS-LA104A060B1A	PDF DXF STEP	DUS2200A-02-LA104001
10.4	E : 246.6 x 198.7 A : 211.2 x 158.4	1.8	DUS-LA104A060B2A	PDF DXF STEP	DUS2200A-02-LA104002
12.1	E : 308 x 242 A : 246 x 184.5	1.1	DUS-LA121A060B1A	PDF DXF STEP	DUS2200A-02-LA121001
12.1	E : 283.6 x 227 A : 246 x 184.5	1.8	DUS-LA121A060B2A * Build to Order	PDF DXF STEP	DUS2200A-02-LA121002
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.1	DUS-LA121WA060B1A	PDF DXF STEP	DUS2200A-02-LA121W001
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.8	DUS-LA121WA060B2A	PDF DXF STEP	DUS2200A-02-LA121W002
15	E : 393 x 317 A : 304.2 x 228.1	1.1	DUS-LA150A060B1A	PDF DXF STEP	DUS2200A-02-LA150001
15	E : 344.4 x 273.2 A : 304.2 x 228.1	1.8	DUS-LA150A060B2A	PDF DXF STEP	DUS2200A-02-LA150002
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.1	DUS-LA156WA060A1A	PDF DXF STEP	DUS3200-02-LA156W001
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.8	DUS-LA156WA060A2A	PDF DXF STEP	DUS3200-02-LA156W002
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.1	DUS-LA185WA060A1A	PDF DXF STEP	DUS3200-02-LA185W001
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.8	DUS-LA185WA060A2A	PDF DXF STEP	DUS3200-02-LA185W002
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.1	DUS-LA215WA060A1A	PDF DXF STEP	DUS3200-02-LA215W001
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.8	DUS-LA215WA060A2A * Build to Order	PDF DXF STEP	DUS3200-02-LA215W002

SUPPORT DOWNLOAD

Download Docs

Specification

Touchscreen | DUS-LA SERIES

Download

Specification

Controller | DUSx200 SERIES

Download

I2C Interface DUS1200 DUS2200A DUS3200

Manual

Cover-Glass/Glass/Glass Structure Touchscreen | Installation Guide

Download

Cable

Controller Cable | DUS-10USB

Download

Catalog

Touchscreen | DUS-LA SERIES

Download

Other Downloads

PRODUCT INFO

Product Detail

Cover-Glass Touchscreen
with Glass Sensor

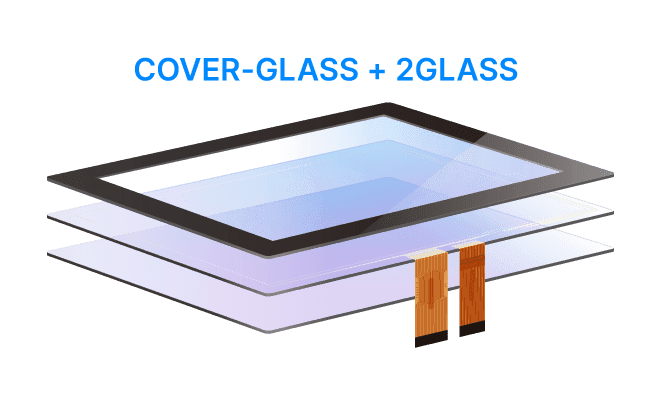

Standard type based on a two-layer glass touchscreen. Clearly visible, high transmittance glass and visibility allow for ease of use and a high quality feel, while enhancing the design.

Improved Environmental
& Operational Performance

Two layers of glass + cover glass and independently developed environmental performance provide improved performance for long-term use, robustness and weather resistance, as well as unchanged operational performance with on-the-spot sensitivity adjustment.

WHY DUS-LD SERIES

Why choose the DUS-LD SERIES?

Adopts a High UV-absorbing
Structure of its Own Development

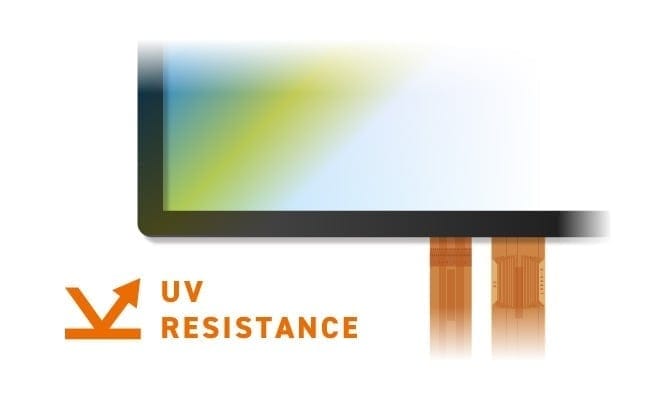

DMC's unique UV absorbing structure absorbs UV rays on the touchscreen with the ability to reduce UV damage to the LCD display. Can also be used for products used under intense sunlight.

High Resistance from
High to Low temp environments

Guaranteed to operate in environments from -40°C to 80°C, providing high temperature resistance. It can be used in products deployed worldwide, from the intense high-temperature environments of tropical countries to the extreme low-temperature environments of northern countries.

Performance with Original Operation & Noise & Environmental Resistance

Fine-tuning with DMC's unique touch screen controller allows for water detection, glove operation and pen use, as well as noise filtering to enhance the ability to cope with high noise environments.
