DUS-F SERIES - Capacitive Touchscreen

Line Up

DRAG TO LEFT

Size	Dimension(mm) E : Outline A : Active-Area	Total Thickness(mm)	Product Number	Drawing, 2D/3D Data	Controller
7w	E : 188 x 133 A : 152.4 x 91.44	1.1	DUS-F070WA060A1A	PDF DXF STEP	DUS1200-02-F070W001
7w	E : 183.1 x 132 A : 152.4 x 91.44	1.8	DUS-F070WA060A2A	PDF DXF STEP	DUS1200-02-F070W002
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.1	DUS-F101WA060A1A	PDF DXF STEP	DUS1200-02-F101W001
10.1w	E : 255 x 171.7 A : 216.96 x 135.6	1.8	DUS-F101WA060A2A	PDF DXF STEP	DUS1200-02-F101W002
10.1w	E : TBD x TBD A : TBD x TBD	1.8	DUS-F101WA060A2A/WS	PDF DXF STEP	DUS1200-02-F101WWS002
10.4	E : 272 x 216 A : 211.2 x 158.4	1.1	DUS-F104A060B1A	PDF DXF STEP	DUS2200A-02-F104001
10.4	E : 246.6 x 198.7 A : 211.2 x 158.4	1.8	DUS-F104A060B2A	PDF DXF STEP	DUS2200A-02-F104002
12.1	E : 308 x 242 A : 246 x 184.5	1.1	DUS-F121A060B1A	PDF DXF STEP	DUS2200A-02-F121001
12.1	E : 283.6 x 227 A : 246 x 184.5	1.8	DUS-F121A060B2A	PDF DXF STEP	DUS2200A-02-F121002
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.1	DUS-F121WA060B1A	PDF DXF STEP	DUS2200A-02-F121W001
12.1w	E : 299.5 x 214.6 A : 261.2 x 163.2	1.8	DUS-F121WA060B2A	PDF DXF STEP	DUS2200A-02-F121W002
15	E : 393 x 317 A : 304.2 x 228.1	1.1	DUS-F150A060B1A	PDF DXF STEP	DUS2200A-02-F121W001
15	E : 344.4 x 273.2 A : 304.2 x 228.1	1.8	DUS-F150A060B2A	PDF DXF STEP	DUS2200A-02-F121W002
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.1	DUS-F156WA060A1A	PDF DXF STEP	DUS3200-02-F156W001
15.6w	E : 386.2 x 241.4 A : 344.3 x 193.6	1.8	DUS-F156WA060A2A	PDF DXF STEP	DUS3200-02-F156W002
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.1	DUS-F185WA060A1A	PDF DXF STEP	DUS3200-02-F185W001
18.5w	E : 456.9 x 289.5 A : 409.8 x 230.4	1.8	DUS-F185WA060A2A	PDF DXF STEP	DUS3200-02-F185W002
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.1	DUS-F215WA060A1A	PDF DXF STEP	DUS3200-02-F215W001
21.5w	E : 526.4 x 330.3 A : 476.7 x 268.1	1.8	DUS-F215WA060A2A	PDF DXF STEP	DUS3200-02-F215W002

SUPPORT DOWNLOAD

Download Docs

Specification

Touchscreen | DUS-F SERIES

Download

Specification

Controller | DUSx200 SERIES

Download

I2C Interface DUS1200 DUS2200A DUS3200

Manual

Film/Film Structure Touchscreen | Installation Guide

Download

Cable

Controller Cable | DUS-10USB

Download

Catalog

Touchscreen | DUS-F SERIES

Download

Catalog

Touchscreen | G-SURFACE

Coming Soon

Other Downloads

PRODUCT INFO

Product Detail

Cover-Glass Touchscreen
with Film Sensor

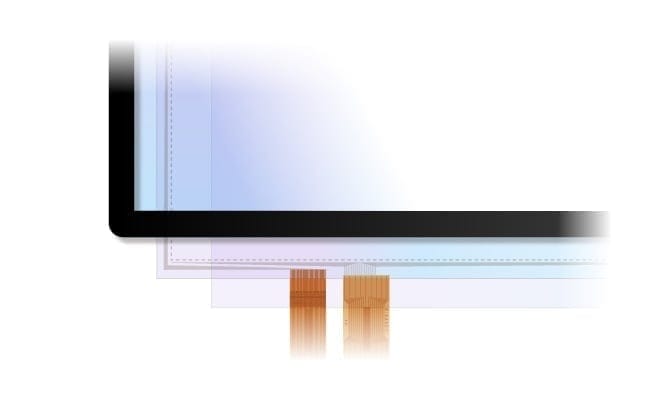

Standard film model based on a thin/light film 2-layer touchscreen. Thin & lightweight even with cover glass. Easy to handle & suitable for devices with limited clearance.

Thinnest with Both
Toughness & Lightness

The cover glass & glass are bonded together without an air layer, which maintains the toughness & lightness of the finish & achieves the thinnest possible thickness. It improves convenience & contributes to slimming down & reducing the weight of installed products.

WHY DUS-F SERIES

Why choose the DUS-F SERIES?

Thinnest with Two Layers
of Cover-Glass & Film

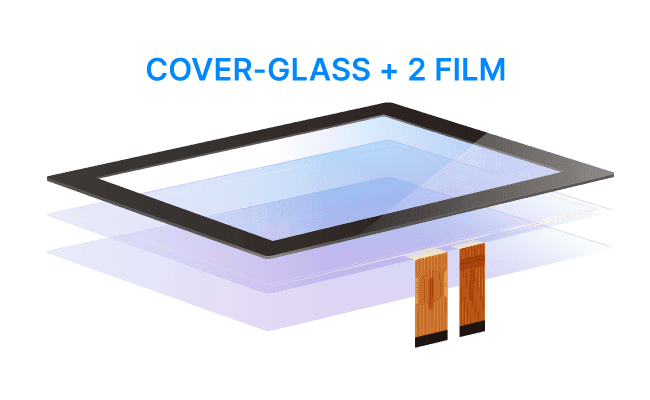

With a glass sensor, three sheets of glass are required when the cover is added, but with a film sensor, two sheets of film are enough to cover the cover glass plus an extra few millimetres, making it the thinnest capacitive touchscreen with a cover.

Almost Exclusively Cover weight & lightest weight

It is also the lightest capacitive touchscreen with cover, as it weighs about two glass sheets less than a glass sensor. It is a high-performance product that retains robust performance while adding ease of use.
