TOUCHSCREEN MONITOR
Touchscreen Monitor
TOUCHSCREEN MONITOR
Stylish SmartTouch Monitor
Smart design with thin and narrow frame body. Stylish touch monitor with selectable system.
15.6w
21.5w
Thin and stylish full-flat touch monitor that lets you choose the perfect touchscreen for your needs. Adapts to a variety of markets, from industrial to consumer, and meets the needs of a diverse range of users.
LINEUP

Series Lineup

Spec
DRAG TO LEFT
Product Name
Size
pixels
(H x V dot)
Display Area
(W x H mm)
pixel Pitch
(W x H mm)
Display Color
Vertical Viewing
Angle
Horizontal Viewing
Angle
Brightness
Backlight
Backlight Life
(Typ.)
interface
Input Resolution
(H x V dot : Max.)
Scanning Frequency (Vertical)
Scanning Frequency (Horizontal)
Upstream
(Host Connection)
Touchscreen
Simultaneous
Touch Points
Communications
Operating Life/
Continuous keystrokes
(Finger Input)
OS
Operating
Temperature
Storage/
Ambient
Humidity
Storage/
Ambient
Humidity
Corrosive Gas
Dust
Air Pressure Resistance
(Operating Altitude)
Vibration Resistant
Mounting (VESA:mm)
Dimention
(W x H x D mm)
Weight
Vertical & Horizontal
Display
Body Color
Rated Voltage
Voltage Tolerance
Power consumption
Stand
TMG-156FH01-01
15.6w
FullHD (1920 x 1080)
344.16 × 193.59
0.17925 × 0.17925
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
390cd/㎡
LED
50,000 h
HDMI *2
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
PCAP Touchscreen
5 Points
USB
50 million times
Microsoft® Windows® 11/10 (32/64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
390 x 245 x 48
App. 2.9kg
✓
Black
DC 12V
DC12V±10%
25W
SWST-01-001 *5
TMH-156FH01-01
15.6w
FullHD (1920 x 1080)
344.16 × 193.59
0.17925 × 0.17925
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
340cd/㎡
LED
50,000 h
HDMI *2
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
Resistive Touchscreen
1 Point *3
USB
10 million times
Microsoft® Windows® 11/10 (32/64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
390 x 245 x 48
App. 2.7kg
✓
Black
DC 12V
DC12V±10%
25W
SWST-01-001 *5
TMG-215FH01-01
21.5w
FullHD (1920 x 1080)
476.064 × 267.786
0.24795 × 0.24795
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
350cd/㎡ *1
LED
50,000 h
HDMI *2
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
PCAP Touchscreen
5 Points
USB
50 million times
Microsoft® Windows® 11/10 (64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
527 x 325 x 52
App. 4,700g
✓
Black
DC 12V
DC12V±5%
25W
SWST-01-001 *5
TMH-215FH01-01
21.5w
FullHD (1920 x 1080)
476.064 × 267.786
0.24795 × 0.24795
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
310cd/㎡ *1
LED
50,000 h
HDMI *2
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
Resistive Touchscreen
1 Point *3
USB
10 million times
Microsoft® Windows® 11/10 (64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
527 x 325 x 52
App. 4,500g
✓
Black
DC 12V
DC12V±5%
25W
SWST-01-001 *5
TMG-215FH03-01
21.5w
FullHD (1920 x 1080)
476.064 × 267.786
0.24795 × 0.24795
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
350cd/㎡ *1
LED
50,000 h
HDMI *2
USB 3.0 x 2 (TYPE-A)
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
PCAP Touchscreen
5 Points
USB
50 million times
Microsoft® Windows® 11/10 (64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
527 x 325 x 52
App. 4,700g
✓
Black
DC 12V
DC12V±5%
35W
SWST-01-001 *5
TMH-215FH03-01
21.5w
FullHD (1920 x 1080)
476.064 × 267.786
0.24795 × 0.24795
16,770,000
178°(89°/89°) Typ
178°(89°/89°) Typ
310cd/㎡ *1
LED
50,000 h
HDMI *2
USB 3.0 x 2 (TYPE-A)
FullHD (1920 x 1080)
50Hz – 60Hz
30KHz – 80KHz
USB 3.0
Resistive Touchscreen
1 Point *3
USB
10 million times
Microsoft® Windows® 11/10 (64bit)
0～40℃
-10～60℃
10～80%RH (No condensing, Wet bulb temperature 39℃ or under)
No Corrosive Gases
No Dust
800～1,114hPa (Altitude below 2,000 m)
5 to 9 Hz, single amplitude 3.5 mm
9-150Hz constant acceleration, 9.8m/s2
X,Y,Z directions 10 times each (100 minutes)
100 x 100
527 x 325 x 52
App. 4,500g
✓
Black
DC 12V
DC12V±5%
35W
SWST-01-001 *5
  • * Microsoft® Windows® 10/11 is a registered trademark of Microsoft Corporation in the USA and other countries.
  • *1 LCD unit Typ. 400cd/㎡
  • *2 HDCP unsupported
  • *3 Supports gesture operation
  • *8 Not available for vertical display
PRODUCT INFO

Feature

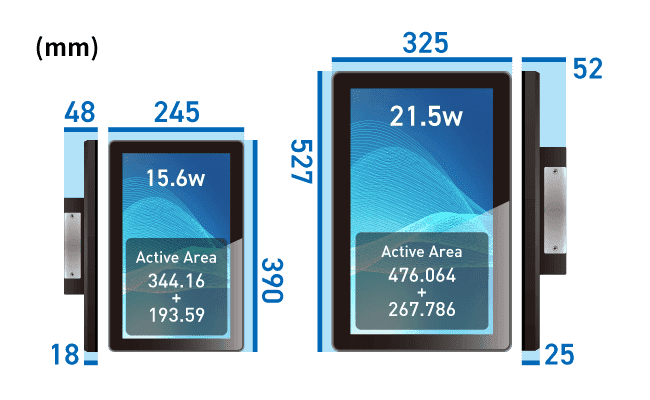

  • Stylish design with ultra-thin, narrow-framed body
  • Stylish design with ultra-thin, narrow-framed body

    The panel is ultra-thin, with a thickness of 18 mm (15.6w) & 25mm (21.5w), a frame width of less than 26 mm, and a simple, luxurious design based on black. It can be used in a wide variety of situations in a wide range of usage environments and applications.

  • Touchscreen system that can be selected to suit the application and operating environment
  • Touchscreen system that can be selected to suit the application and operating environment

    The most suitable touchscreen system can be selected according to the application and operating environment, such as projected capacitance for applications requiring robustness and clean image quality, such as public terminals, or light-load resistive film for applications requiring high operational stability and reliability, such as FA.(Capacitive: multi-touch/fastness/clear; Resistive: gesture operation/security/reliability)

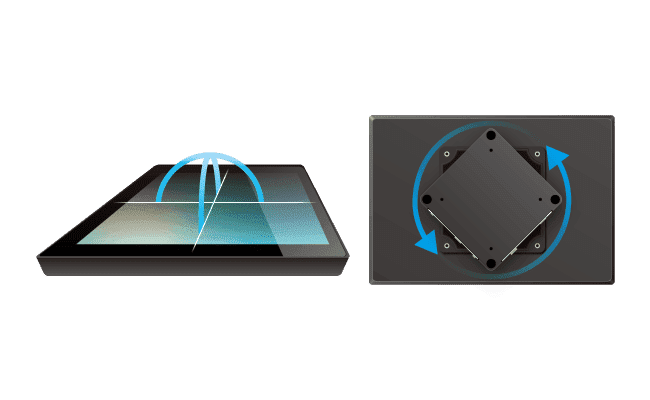

  • Rotation mechanism on the monitor body. Flexible mounting direction
  • Rotation mechanism on the monitor body. Flexible mounting direction

    The back of the monitor is movable, making it easy to change the mounting direction. The ultra-wide viewing angle LCD provides wide viewing angles in four directions, making it suitable for installation in both vertical and horizontal directions (Viewing angle/horizontal and vertical 170°).

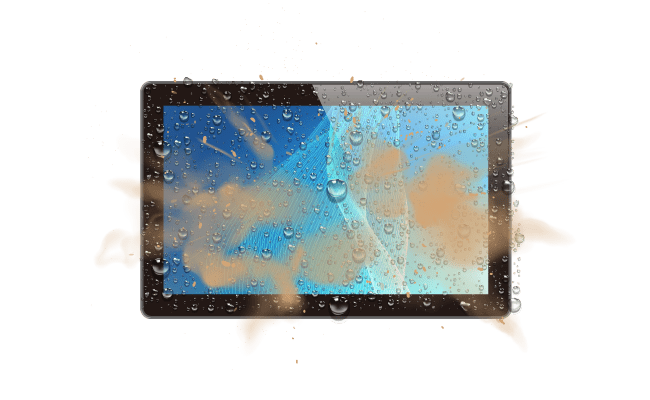

  • Dust and waterproof performance IP65-compliant to prevent dust and water droplets
  • Dust and waterproof performance "IP65-compliant" to prevent dust and water droplets

    IPX5-compliant splash protection to prevent foreign objects from entering through the front bezel and IP6X-compliant dust protection to withstand use without worrying about water drops or dust Designed for FA and ideal for use in harsh environments.

    * IP65 only for size 21.5w display surface; VESA box and I/F cable section are not splash-proof. In actual use, operation is not guaranteed in all conditions.

  • Video introduction to product functions
  • Product Details Video

    Click on the image to play the video, which shows the product configuration and features of the Stylish Smart Touch Monitor, as well as other product-related information.
