TOUCHSCREEN-MODULE
Touchscreen Module Set
TOUCHSCREEN-MODULE
SIMPLESETPlus
TK-SSERIES
Easy-to-use LCD module set with product design that adds video input to the LCD with touchscreen.

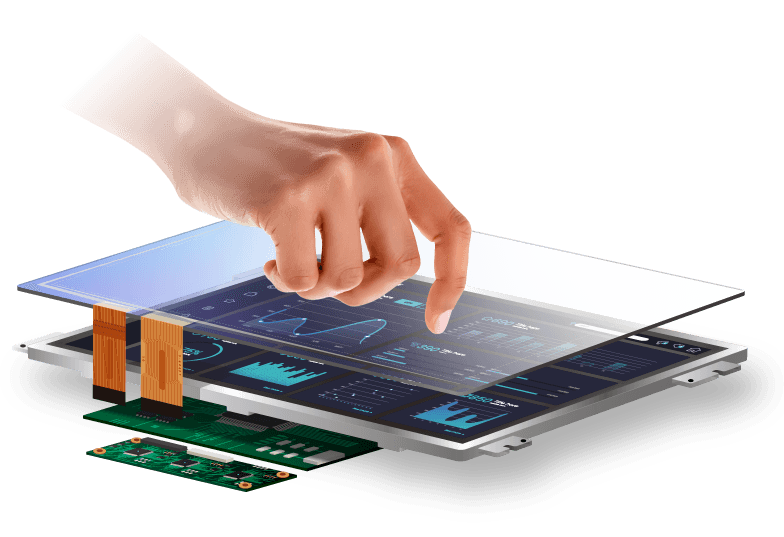

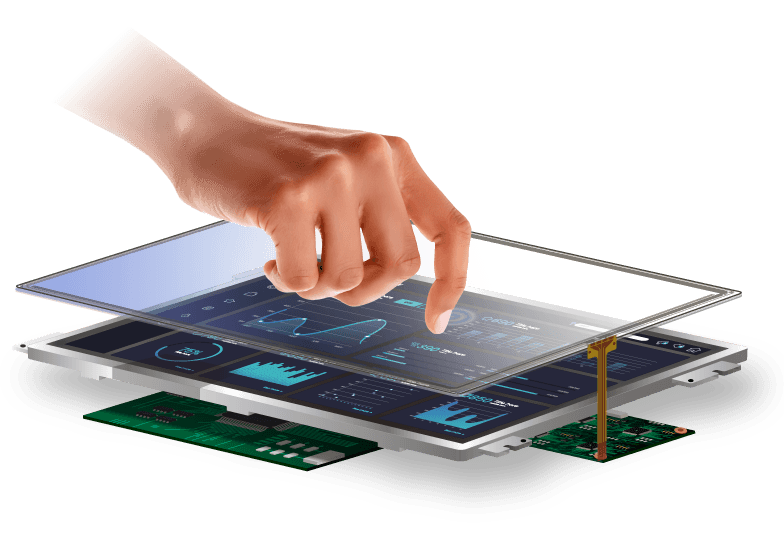

Simple Set Plus includes a touchscreen sensor, controller, LCD, and image processing board. It comes standard with HDMI input, so you can use it as a touchscreen LCD display right after purchase. You can choose the best configuration pattern for your monitor module design.
LINEUP

Series Lineup

Spec
DRAG TO LEFT
Size resolution LCD I/F LCD maker HDMI
board
Controller Touchscreen
System
(Structure)
Product No. Drawing,
2D/3D Data
10.1w 1024 x
600
LVDS AUO Resistive
(F/G)
TK-SRA101WS-01A3
10.1w 1024 x
600
LVDS AUO PCAP
(G/G)
TK-SPA101WS-11A3
12.1w 1280 x
800
LVDS Innolux Resistive
(F/G)
TK-SRA121WX-01A3
12.1w 1280 x
800
LVDS Innolux PCAP
(G/G)
TK-SPA121WX-11A3
15.6w 1920 x
1080
LVDS Data Image Resistive
(F/G)
TK-SRA156FH-01A3
15.6w 1920 x
1080
LVDS Data Image PCAP
(G/G)
TK-SPA156FH-11A3
21.5w 1920 x
1080
LVDS Innolux Resistive
(F/G)
TK-SRA215FH-02A3
21.5w 1920 x
1080
LVDS Innolux PCAP
(G/G)
TK-SPA215FH-12A3
  • * Image Input=HDMI, Touchscreen Control= USB I/F, Power Input=12VDC
PRODUCT INFO

Feature

  • Free choice and combination of economic and design features
  • Free choice and combination of economic and design features

    The sensors and LCDs (Liquid Crystal Display) can be efficiently selected according to the application, and the controller can be unified to standardise applications and contribute to economic efficiency. Customisable cover glass and a variety of options offer appealing services.


  • Touchscreen + LCD + HDMI Board + Controller SIMPLE SET Plus
  • Touchscreen + LCD + HDMI Board + Controller 'SIMPLE SET Plus'

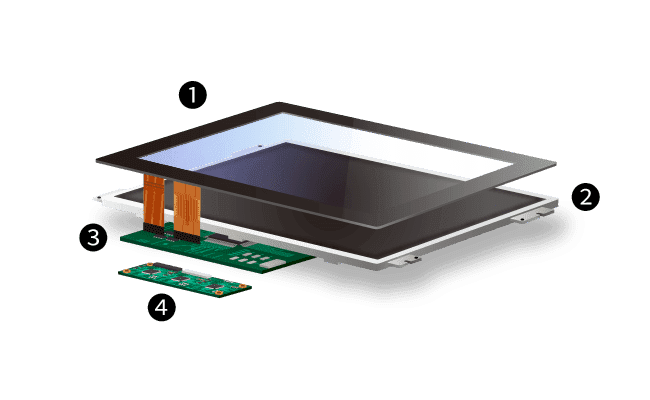

    4-piece set consisting of 1) cover glass/overlay + 2) LCD (liquid crystal display) + 3) HDMI Board + 4) touch controller. In combination with options, the optimum module can be selected to suit the product or device under development. A touchscreen environment can be introduced in line with the environment and needs.


  • 段差なくスライド操作がしやすいフルフラットデザイン
  • Touchscreen type "selectable" according to App & operating environment

    The most suitable touchscreen type can be selected according to the application and operating environment, such as projected capacitive for applications requiring robustness and clean image quality, such as public terminals, or light-load resistive for applications requiring high operational stability and reliability, such as factory automation.


  • Equipped with HDMI Boards for various interfaces of choice
  • Equipped with HDMI Boards for various interfaces of choice

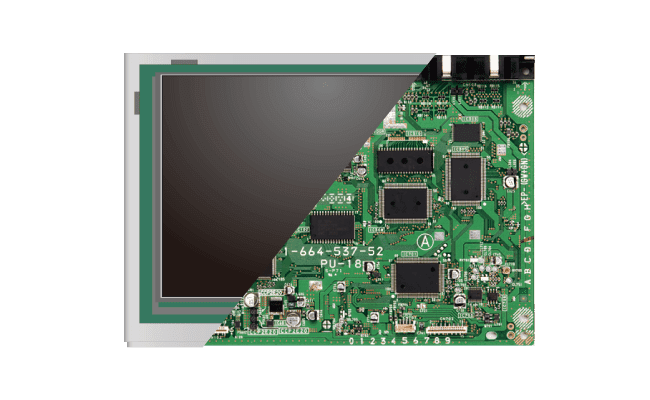

    Equipped with an HDMI Boards, which is essential for LCD lighting. Can be used immediately after purchase as an LCD display with touchscreen, and various interfaces other than HDMI, such as VGA and DVI, are available on request.


  • Projected capacitive touchscreen 'PCAP' type

    Uses a capacitive touchscreen for light touch and nimble operation. Supports multi-touch gestures familiar to smartphone users, such as zooming in/out, flicking and panning. Intuitive operation like never before is possible.


  • Analogue resistive touchscreens 'light-load' type

    Resistive touchscreens are used, which can be operated by touch input using finger pressure, pen or other pressure-sensitive devices. It does not react easily to dust, water droplets and other dirt, and can be used for input regardless of the material used, such as thick gloves.


  • Optional 'cover glass material' for different environments and applications

    Acrylic, which is half the weight of glass, has greater transparency than glass, can be cut and drilled, and is flexible and resistant to cracking. Low-cost, scratch-resistant glass with excellent durability above a certain level. (up to ~5 mm thick) You can choose tempered glass, which is 3-5 times stronger than glass and highly durable. (PCAP type only)


  • 'Silk/inkjet printing' option with choice of design

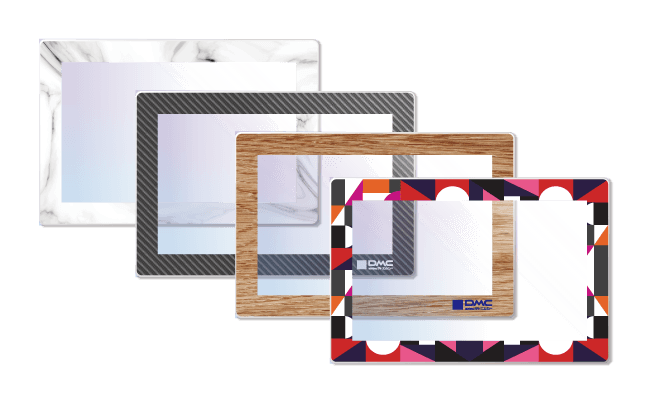

    Various shapes and colours can be printed, including colour schemes that match the product colours, patterns and logos with complex expressions. In addition to silk printing, inkjet printing is also possible. Inkjet printing can also be used. Quick delivery and reasonable costs are possible. (PCAP type only)


  • Air/optical bonding" attachment option of choice

    Air bonding is achieved by attaching and fixing the four sides of the panel with four long, thin tapes or double-sided tape with the centre cut out in a rectangular shape. Optical bonding can improve visibility by minimising the refractive index of light and increasing transmittance by pouring optical elasticity resin between the liquid crystal and the panel and bonding them together.


  • Product Details Video

    Click on the image to play the video, which shows the product configuration and features of the TK-S Plus SERIES, as well as other product-related information.
