High Durability Square Model with 5-wire System
FST
SERIES
High-Durability Model
- Long-Life Model
- Resistive Type
- 4-wire Type
- Film/Glass
- Single-Touch
- Gestures Unsupported
- Pen/Gloved-Hand
- Anti-Glare or Clear
10.4
12.1
15
17
19
10.4
12.1
15
17
19
Controller
5WIRE RESISTIVE TOUCHSCREEN
Resistive touchscreen with excellent durability and maintainability
-
-
5-wire resistive touchscreen
5-wire analog resistive touchscreen series. Guaranteed keystroke life of 35 million cycles or more, 3.5 times longer than 4-wire touchscreens.
-
-
Improved stability and reliability
Realizes high durability while maintaining the ease of use of a 4-wire resistive touchscreen. Improved stability and reliability with long life.
-
-

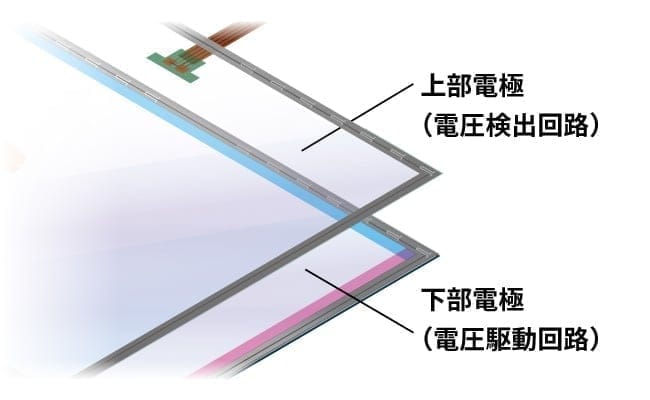

Durable and resistant to deterioration
Even if the upper ITO film degrades, it does not affect the detection performance, and the lower ITO film is coated on the glass, making it highly durable.
Specification
SPEC
| Size |
Tail Length/ Pin Pitch/ Position(mm) |
Dimension(mm) E : Outline A : Active-Area |
Glass/ Total Thickness(mm) |
Product Number | Controller |
|---|---|---|---|---|---|
| 10.4 | 110/*Note1/Left Side |
E : 248.92 x 186.69 A : 215.9 x 163.83 |
1.8/2.1 |
FST-T104C110A |
TSC-55/U-L,
TSC-55/RU, TSC-45/RSA-E |
12.1 | 110/*Note1/Left Side |
E : 271.27 x 205.74 A : 248.87 x 187.4 |
1.8/2.1 |
FST-T121C110A |
TSC-55/U-L,
TSC-55/RU, TSC-45/RSA-E |
15 | 110/*Note1/Left Side |
E : 332.88 x 248.88 A : 307.11 x 231.09 |
1.8/2.1 |
FST-T150C110A |
TSC-55/U-L,
TSC-55/RU, TSC-45/RSA-E |
17 | 110/*Note1/Left Side |
E : 365.4 x 290.18 A : 340 x 272.4 |
1.8/2.1 |
FST-T170C110A |
TSC-55/U-L,
TSC-55/RU, TSC-45/RSA-E |
19 | 110/*Note1/Left Side |
E : 406.28 x 325.4 A : 380.88 x 305.62 |
1.8/2.1 |
FST-T190C110A ※受注生産 |
TSC-55/U-L,
TSC-55/RU, TSC-45/RSA-E |
- * Build to Order
- *1: Please check the specification sheet.
